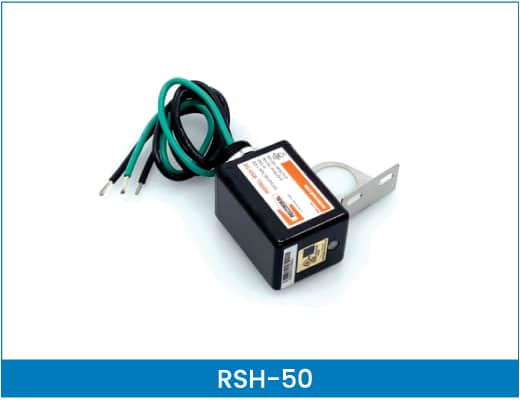

Surge Protective Device

RSH-50
Technical Specifications
  • Case Weight (lbs) – 2.20
  • Case Length (inch) – 4.71
  • Brand – RectorSeal
  • UPC – 021449964159
  • Case Height (inch) – 1.80
  • Case Width (inch) – 10.50
  • Interleaved – 10021449964156
  • Operating Voltage – 120/240VAC
  • Max discharge current per phase: 50kA (1 hit)
  • Normal discharge current – 10kA (15 hits)
  • Short circuit current – 200kA
Features
  • Long-Lasting Gas Discharge Tube Technology
  • TFMOV Technology (Thermally Fused Metal Oxide Varistor)
  • Limited Lifttime Warranty
  • Green LED Easily Indicates Protection
  • Weather-Rated under NEMA 4
  • Fits All Single-Phase Units
  • UL 1449 Listed
  • NEC’s highest Short Circuit Current Rating (SCCR) @200kA
  • RoHS Compliant
Application
  • Protect HVAC equipment from electrical surges
  • Protects from up to 50,000-amp single surges and up to 10,000-amp repetitive surges
  • Type 1 Device – can be mounted in any position
Recommended for
  • Residential and commercial use
  • All single phase 120/240 VAC outside condensing units and indoor air handlers
